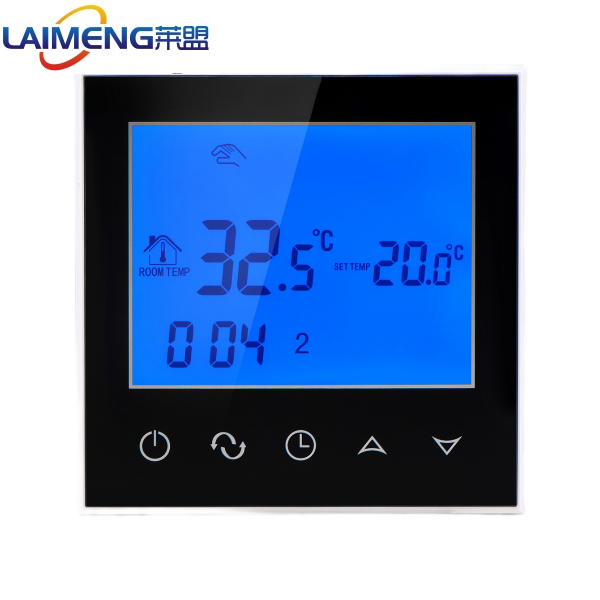

Heating Mat Touch Screen Digital Programmable Thermostat
LM-DV321 LM-DV321 series of thermostats are Large Glass touch screen thermostat with blue/white back light. It is applied to temperature control of industrial, commercial and domestic room, and start of control heating appliances, especially floor heating systems.
- Product Introduction
LM-DV321 series range has been developed to control electric heating,water heating and wall hang gas boiler heating
system.With amazing digital display LCD.It has design to used in domestic.commercial,civil properties.With weekly
programmable.Easy convenient and energy saving for you to use.
|
Model |
LM-DV321 |
||
| Material | Anti-flammable PC +ABS3 | ||
|
Power supply |
95-240V,50/60Hz |
Storage Temp. |
-5 ~ 45 ℃ |
|
Current Load |
5A(Water heating,gas biler heating)
16A(Electric underfloor heating) |
Power Consumption |
<1.5W |
|
Sensor |
NTC3950, 10K±1% |
Timing Error |
< 1% |
|
Accuracy |
±0.5℃ |
Shell Material |
PC +ABS ( Fireproof) |
|
Set Temp. Range |
5-35℃ |
Installation box |
EU 60Round box Or 86 Box |
|
Dispaly Temp.Range |
5-99℃ |
Wire Terminals |
2 x 1.5 mm2 or 1 x 2.5 mm2 |
|
Ambient Temp. |
0 ~ 45 ℃ |
Protection Class |
IP20 |
Product Images
 |
 |
 |
Remmend
Company Profile
 |
 |
 |
 |
 |
 |
TAIZHOU LAIMENG FLUID CO.,LTD is one of the main HVAC products supplier in China.Inlcuding room thermostats ,brass valves ,manifold ,thermal actuator with more than 6 years of HVAC line.We have strong R&D experiences .Fast reaction ,Quickly delivery.These help us have many famous brand partners.We are locted in Yuhuan nearby Wenzhou.This is very convenient to export products or meet customers..
If you are looking for the thermostat temperature controller wifi, Brass Radiant Heat Manifold Set With 1/2" Adapters,stainless steel heat pump floor heating water distribution radiant heat pex manifold compression fittings underfloor system,bronze manifold, Underfloor Heating Thermal Actuator Thermostatic Electrical Radiator Actuator,brass valves,brass wine barrel faucet tap,filter that you can contact with us.
Quality
All our product are strictly produced according to the technical requirement of the products & 100 % testing before shippment,and we can guarantee our products.
Packaging & Delivery
Packaging Details
temperature control panel package as following:
1. Regular Packing:
Inner packing: small box
Outer packing:Five-layer corrugated box
Bulk container /with pallets
2. Packing can be customized with your own brand and logo
Port
NINGBO/SHANGHA
