Thermostat Temperature Controller Wifi

The temperature control panel refers to the temperature controller. The temperature controller mainly consists of two parts: the circuit panel and the power module. People usually refer to temperature controllers in central air conditioning systems and underfloor heating systems as temperature control panels

classification

It can be divided into mechanical capsule type temperature control panel, LCD temperature control panel, temperature control panel with remote control function, wireless temperature control panel, programmable temperature control panel, non programmable temperature control panel, etc

application

Terminal control of central air conditioning fan coil system

The digital temperature controller uses electronic logic circuits to compare the room temperature with the set temperature, and controls the water valve and fan based on the comparison results to keep the room temperature at a constant value, in order to achieve temperature control and create a comfortable environment.

Widely used in commercial, industrial, civil buildings, and villas for heating, cooling, or controlling fans and water valves at the end of year-round central air conditioning.

Heating and underfloor heating system control

○ Wall mounted furnace temperature control panel [1]

Mainly used in the wall mounted boiler water heating control system to control the opening and closing of wall mounted boilers, circulating water pumps, or electric actuators, achieving comfortable temperature control.

○ Floor heating temperature control panel

It can be divided into electric heating temperature controllers and hot water heating temperature controllers.

Used to control the electric actuator switch of the floor heating system or water heating floor heating system, achieving the purpose of comfortable temperature control.

○ Water source heat pump temperature control panel

The water source heat pump temperature control panel is suitable for temperature control in industrial, commercial, and household homes, controlling directional valves, fans, compressors, solenoid valves, and electric heaters

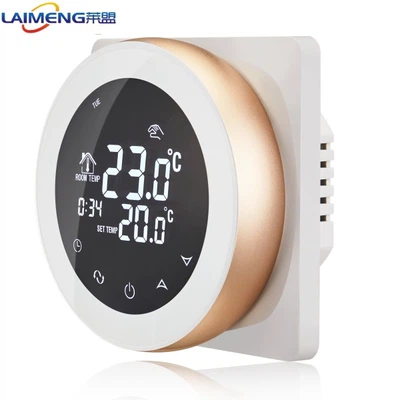

Model	LM-DV365RF
Output switch contact	2 normally open contacts, 250v load max 3A(heating & cooling via 2-point control)	3 normally open contact, 250v load max. 3A, Fan
Output voltage	2*0-10v for heating & cooling	1*0-10v for fan
Inputs	Input for external sensor NTC 10K	Input digital for floating contact, window contact, dew point sensor	Input digital for floating contact, occupancy sensor, key card switch
Network technology	RS485 Modbus, RTU, half-duplex, baud rate 4.800, 9.600, 19.200 or 38.400, parity: non (2 stopbits), even or odd (1 stopbit)  WIFI 2.4G wififi communication
Power supply	24v DC/AC 50/60Hz		Power consumption	Max. 3W
Max load current	＜3A		Measuring range temp.	+1~+50 °C
Accuracy temperature	±1K (typ. at 21 °C)		Control functions	Set point adjustment +1..+50 °C, (default +16..+30 °C)
Display	LCD Ø49 mm, black background white lighting
Connection electrical	Terminal block max. 1,5 mm²





If you are looking for the thermostat temperature controller wifi,  Brass Radiant Heat Manifold Set With 1/2" Adapters,stainless steel heat pump floor heating water distribution radiant heat pex manifold compression fittings underfloor system,bronze manifold, Underfloor Heating Thermal Actuator Thermostatic Electrical Radiator Actuator,brass valves,brass wine barrel faucet tap,filter that you can contact withTAIZHOU LAIMENG  FLUID CO.,LTD

CE FOR THERMAL ACTUATOR                                                            CE FOR MANIFOLD



All our product are strictly produced according to the technical requirement of the products & 100 % testing before shippment,and we can guarantee our products.

Packaging Details

Thermal-electric actuator normally close type for floor heating system
1. Regular Packing:
Inner packing: small box
Outer packing:Five-layer corrugated box
Bulk container /with pallets
2. Packing can be customized with your own brand and logo

Port

NINGBO/SHANGHA

Q1:Is there any  discount if l plan a large order?
A1: of course



Q2: Which field are your products applied to?

A2:Our products are widely used into the underfloor heating system, water treatment, boiler industry and so on.



Q3:Do you accept custom design on size?
A3:We can do it if the size is reasonable..



Q4:Could you print our company LOGO on the  package?
A4:Yes, we can do that according to client's required.



Q5:What is your MOQ? Can I mix different styles to a start order?
A5: Please tell us what products you need first.Different size with different MOQ.

And mix different products at first order is acceptable.
