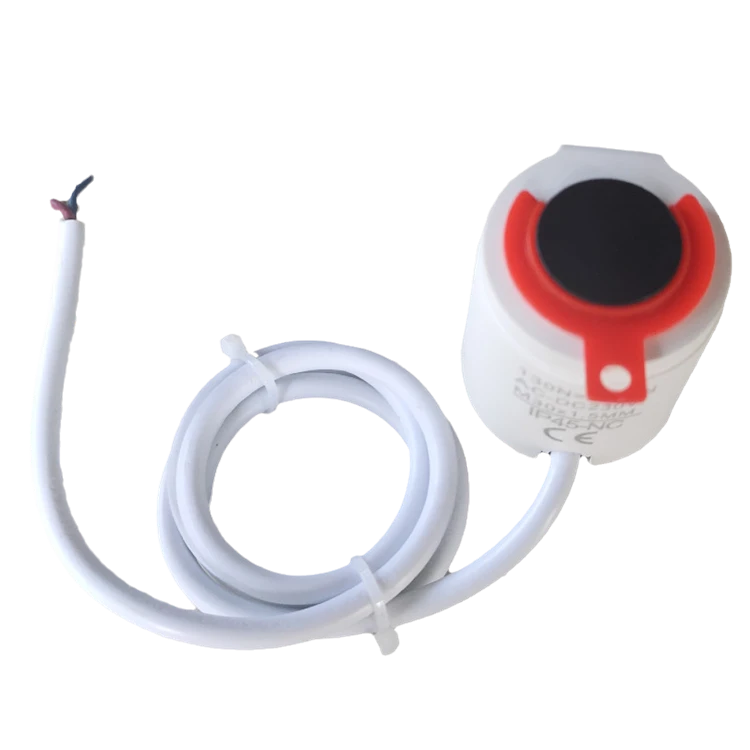

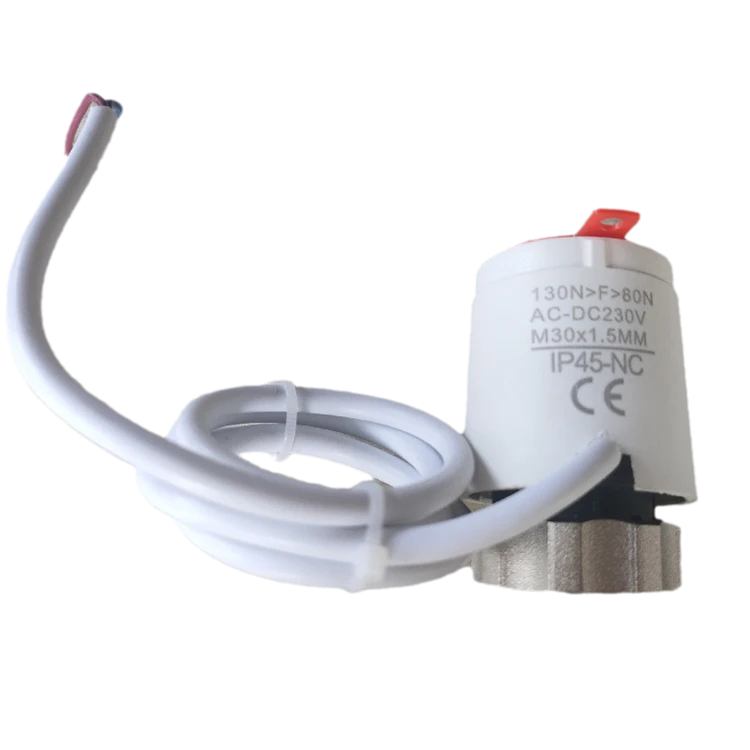

Thermal-Electric Actuator Water Manifold
LM702 The Electro-Thermal Actuator is using for floor heating manifolds,central air conditioning(water system) small valve to opening and close.The normal close actuator is automatic opening after power up.
- Product Introduction
Electric Actuator valve for Manifold
The Electro-Thermal Actuator is using for floor heating manifolds,central air conditioning(water system) small valve to opening and close.The normal close actuator is automatic opening after power up.
24V Normally Closed HVAC System
Floor Heating Thermal Actuator
Model | LM-702 |
Working Voltage | 230VAC/24 VAC |
Protection Grade | IP54 |
Storage Temperature | -20-70℃ |
Running Time | ≤5 Minutes(at 25℃) |
Cable Length | 100cm |
Connection | M30*1.5MM |
Working Journey | ≥4.5mm |
Thrust | 110N |
Shell material | Inflaming retarding(PC) |
Product Images
Company Profile
 |  |
 |  |  |  |
If you are looking for the Brass Radiant Heat Manifold Set With 1/2" Adapters,
stainless steel heat pump floor heating water distribution radiant heat pex manifold compression fittings underfloor system,bronze manifold, Underfloor Heating Thermal Actuator Thermostatic Electrical Radiator Actuator,brass valves,brass wine barrel faucet tap,filter that you can contact withTAIZHOU LAIMENG FLUID CO.,LTD
CERTIFICATE
CE FOR THERMAL ACTUATOR CE FOR MANIFOLD
All our product are strictly produced according to the technical requirement of the
products & 100 % testing before shippment,and we can guarantee our products.
Packaging & Delivery
Packaging Details
Thermal-electric actuator normally close type for floor heating system
1. Regular Packing:
Inner packing: small box
Outer packing:Five-layer corrugated box
Bulk container /with pallets
2. Packing can be customized with your own brand and logo
Port
NINGBO/SHANGHA
FAQ
Q1:Would you have a discount if l have a large order?
A1: Yes we could offer different discount according to your
order quantity.
Q2: Which field are your products applied to?
A2:Our products are widely used into the underfloor heating system, water treatment, boiler industry and so on.
Q3:Do you accept custom design on size?
A3:Yes, if the size is reasonable
Q4:Could you print our company LOGO on the nameplate and package?
A4:Yes, we can do that according to client's required.
Q5:What is your MOQ? Can I mix different styles to a start order?
A5: Please tell us what products you need first.Different size with different MOQ.
And mix different products at first order is acceptable.
