Mixing Water System For Underfloor Heating



Model	LM1002A
Material	Brass Hpb 57-3
Nominal pressure	≤10bar
Applicable medium	Cold & hot water
Working temperature	≤100℃
Temperature control range	30~70℃
Temperature control accuracy	±1℃
Pump connection thread	G11/2"
Connection thread	ISO228 Standard
Specifications	1"

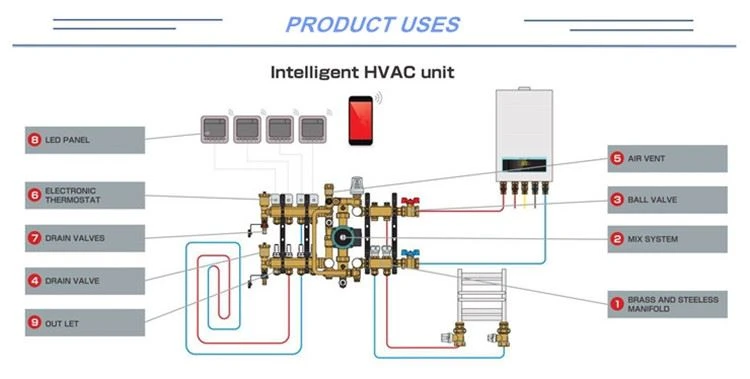

 The floor heating mixing center system is a water temperature and flow control system composed of a circulating water pump, a temperature sensing element, a ball valve with a thermometer, a controller, a temperature sensor, a filter valve, and a water collector device. The mixing center adjusts the temperature of the high-temperature water provided by the wall mounted furnace through temperature controllers and regulating valves, and converts it into low-temperature water required for floor heating. While adjusting the water temperature, you can also adjust the flow through the circulation pump to improve the overall comfort of floor heating. In addition to these two main functions, the mixing center also has functions such as reducing the fluctuation of the outlet water temperature of the wall mounted boiler, which are generally applied to a building area of 50 square meters.





We are TAIZHOU LAIMENG FLUID CONTROL CO.,LTD which is the experienced factory for Stainless steel manifold,brass water manifold,bronze manifold,thermal actuator,brass safety group valve,drain valve,radiator valve,mixing valve unit,filter,temperature controller.

We have many kinds of Manifolds,electric thermal actuator,filter,brass valves for you choose.

We can print your logo in our manifold,actuators,valves,pre filter or print on the package.

We can customize the color accoring to your needs.

We can do OEM.

Also we can do all according to the clients requiements.

Packaging Details

Mixing units for underfloor heating manifold for water heating system
1. Regular Packing:
Inner packing: small box
Outer packing:Five-layer corrugated box
Bulk container /with pallets
2. Packing can be customized with your own brand and logo

Port

NINGBO/SHANGHA

Q:What is a thermostatic mixing valve? What is a mixing valve?

A:The use of thermostatic mixing valves helps ensure the selected mixed-water temperature at the point of delivery to the fixture. In Supply Systems • The water temperature discharged directly from a water heater can vary by ±10°F or more.



Q:What is a mixing valve

A:It's called the mixing valve, and without it your daily supply of water could become dangerous. The term "mixing valve" has the general application of meaning any device in plumbing that controls the mix of hot and cold water to provide a comfortable temperature.



Q:What is a  mixing unit valve used for?

A:For use at the source of hot water in commercial and institutional settings, mixing valves pro- vide reliable temperature control of domestic and hydronic hot water distribution systems. In this way, they extend the capacity of water heater storage tanks and tankless water heaters.



Q:Does the Mixing unit valve with pump or without pump?

A:It is depend on the clients.



Q:What is the delivery time for the mixed water center ?

A:About 30-35 days.
