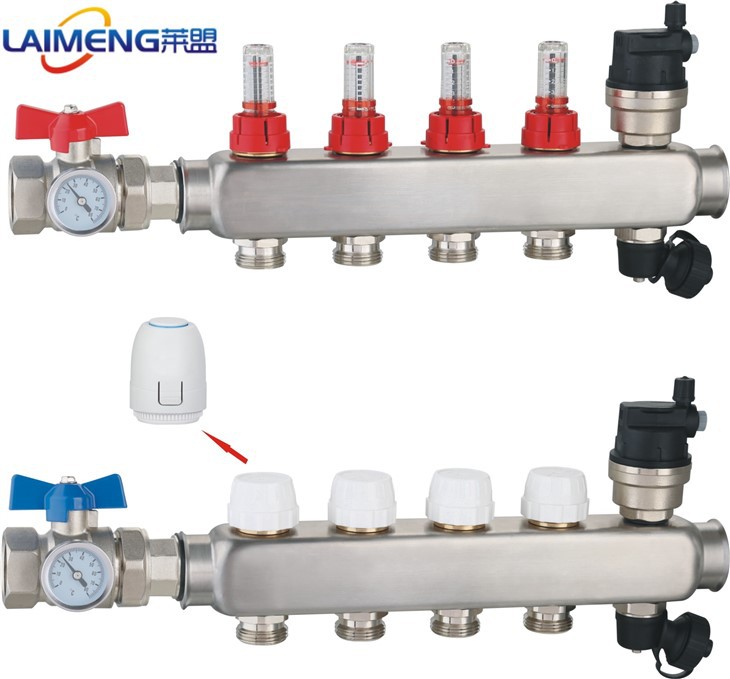

SS MANIFOLDS KIT WITH FLOWMETER

 China factory supply for Stainless Underfloor Heating Manifold

1. Flow rate of 2 GPM per circuit.

2. Maximum of 12 circuites(1"*3/4*2 way to 12 ways).

3. Air vent and drain port on both supply and return manifolds.

4. Control vale and flow metering balance valve on each circuit.

5. Positive shut off at each circuit.

6. Installation brackets provided.

Place of Origin	Zhejiang,China
Supply Ability	100000 pcs/ month
Material	Stainless Steel
Type	manifold
Payment term	TT
Service	7-24 hours online service

 Nominal pressure: ≤10bar

Adjustment scale 0-5

Applicable medium: cold and hot water

Working temperature: t≤70℃

Actuator connection thread: M30×1.5

Connection branch pipe: 3/4''×∅16 3/4''×∅20

Connection thread: ISO 228 standard

Branch spacing: 50mm







This heating SS manifold with automatic flow control is an ideal supplement to the vast range of our manifolds.

• The flow rate for each heating circuit can be continuously adjusted via a regulating shut-off valve integrated in the return circuit.The inspection glasses integrated into the manifold's supply enable visualfunction checks.

• M30x1.5 valve connection for all common actuators (optional accessory).

• Precise adjustment even at high flow rates.

• Premium quality o-ring valve gaskets (EPDM) ensure permanent ease ofoperation and high durability.

• 1" MT flat-sealing connections to heat generator, connection to heating circuitsvia ¾" euro cone for clampring connections.

• Includes an end set with 3/4" swivel connection for shut- off, filling, draining and flushing (ball valves are optional accessories and not included in the scope of supply).

•Ready-mounted on wall bracket

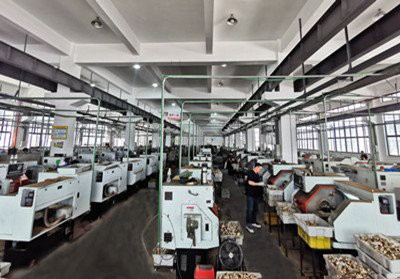

TAIZHOU LAIMENG FLUID CO.,LTD is one of the main HVAC products supplier in China.Inlcuding room thermostats ,brass valves ,manifold ,thermal actuator with more than 6 years of HVAC line.We have strong R&D experiences .Fast reaction ,Quickly delivery.These help us have many famous brand partners.We are locted in Yuhuan nearby Wenzhou.This is very convenient to export products or meet customers..

If you are looking for the thermostat temperature controller wifi, Brass Radiant Heat Manifold Set With 1/2" Adapters,stainless steel heat pump floor heating water distribution radiant heat pex manifold compression fittings underfloor system,bronze manifold, Underfloor Heating Thermal Actuator Thermostatic Electrical Radiator Actuator,brass valves,brass wine barrel faucet tap,filter that you can contact with us.



Warmly welcome to visit us and sincerely hope to cooperate with you!

Packaging Details

2-12  loops Stainless steel flow meter water pipe manifold for floor heating system
1. Regular Packing:
Inner packing: bubble bag +plastic angle
Outer packing:Five-layer corrugated box
Bulk container /with pallets
2. Packing can be customized with your own brand and logo

Port

NINGBO/SHANGHA

All our Stainless steel manifold,Brass manifold,Bronze manifold are packing with standard export package & all the products are testing one by one before the shippment.
